Platinum power swagers bench mounted
Description

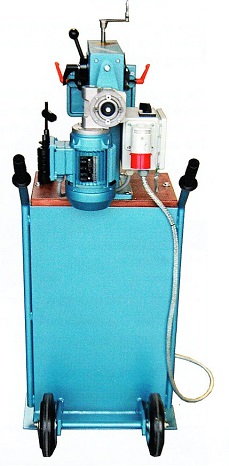

The Platinum range - Power swaging machines bench mounted model: S50-ISO/T and S56-ISO/T
These machines are designed as table machines, they are suitable for workshops as well as for the buildin site due to their light weight. The machine bodies are made of special machine casting in a closed design. The electric control and tool compartment are installed in the aluminium machine base. The roller is adjusted by shifting or swivelling the top shaft. Corrections can be followed even during operation. The large size stop plate is equipped with a hardened pre screwing plate and all bearings are maintenance free.
Model: S50-ISO/T - Capacity: 1.25mm with throat depth of 170mm (wheel centre distance 50mm)
Model: S56-ISO/T - Capacity: 1.25mm with throat depth 210mm (wheel centre distance 56mm)
Standard equipment
- Large stop plate with hardened pre screwing plate li>
- Foot switch with multi pin plug
- Power supply via CEE coupling 16A with intergrated phase inverter
- Wheel wrench
- Optional extras
- Wheels li>
- Box frame
- Flanging device
- T piece guide
- other working speeds
- holder for wheels
- movable design
