New ! Platinum variable speed power swager
Description
The Platinum range - Model: CMZ 50.22 & 56.22
variable speed, power swaging machines.
The model CMZ 50.02 and 56.22 are variable speed power swagers, ideal for construction use and various other industries. These machines have a capacity of 1mm m.s. and 1.25mm m.s. respectively . The drive takes place via a three phase asynchronous motor with the motor being controlled via a moveable foot to toggle switch.

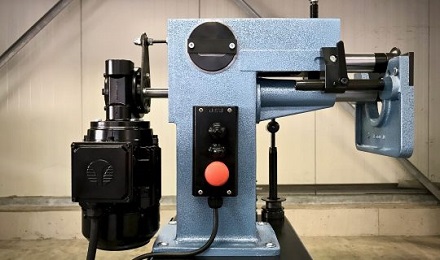

Illustrated is the model CMZ 56.22
The wheels are adjusted by shifting or swivelling the top shaft and because of this corrections can be made even during operation. The large sized stop plate is equipped with a hardened pre screwed plate and all bearings are maintenance free.
| Capacity: | CMZ 50.22 - 1mm mild steel | CMZ 56.22 - 1.25mm mild steel |
|---|---|---|
| Throat depth: | CMZ 50.22 is 195mm | for the CMZ 56.22 225mm |
| Working speeds: | 42/84 rpm | |
Standard equipment
These machines are complete with variable speed , 6 pairs of standard wheels (other wheels are available as optional extras)
- Wheel spanner
- foot control
- electrics 415v
- 3 phase
- 50 hz
- Instruction manual.
Optional Equipment
- Additional wheels (details on request)

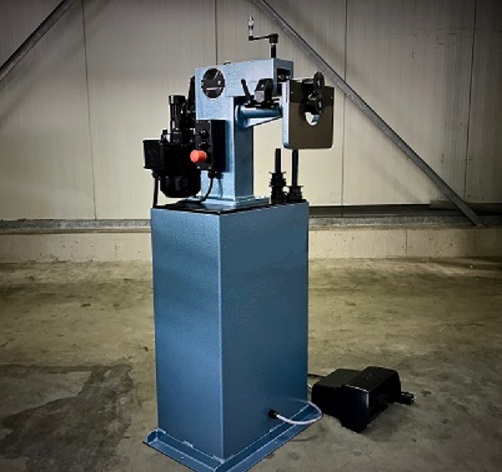

- Stand for machine (as per illustration)
- Divided pre screwed plate - T Piece guide
- Holder for wheels.
Please contact us for more details on specification and wheels available.
