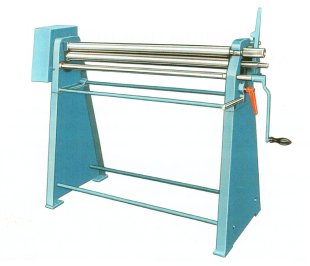

Platinum range manual bending rolls WSRV 03.1 - 04.3
Manual bending rolls with back gear and manual drive. These robustly constructed bending roll machines are suitable for use in workshops and building sites. They are operated by a changeable manual crank directly on the bottom roll.
- WSRV 03.1 - 1020mm x 5mm x 1.25mm
- WSRV 03.2 - 1270mm x 55mm x 1mm
- WSRV 04.1 - 1020mm x 65mm x 1.5mm
- WSRV 04.2 - 1270mm x 65mm x 1.25mm
- WSRV 04.3 - 1520mm x 65mm x 1mm
The working rolls are arranged assymmetrically, spherically turned and are held in place by maintenance free dry plain bearings. The top roll can be swung out towards the front. This roll is locked with a closed blocking bearing. The back gear and the clutch gears are to the left so that narrow pipes can be easily removed.
The top rollis locked by a closed blocking bearing (one hand operation) The bottom and back rolls can be adjusted from the right outer side of the machine. The back roll advances via ratchet lever and tooth segment. The settings can be easily reproduced via the sensitive tooth segment. The back roll can be titled for conical rounding.
Optional extras: Continuously adjustable back roll via hand wheel with position indicator - Transport device for safe transport with forklift or lifting truck - Lock seam groove - Grooves for laying wires.
Please contact us for a full quotation, together with our best discounted prices and delivery times.
