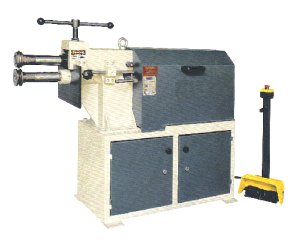

Standard heavy Duty Swaging and Rotary forming machine
Description
Standard range heavy duty universal production swaging and rotary forming machines - in 2 speed format
Models: SPS 2.5 and SPS 4.0
Standard equipment and features:
- 2 speed motor 16 - 32 rpm
- Steel welded construction frame
- Adjustable idle roll
- Adjustable side support
- Steel shafts with bronze bushings
- Reduction motor with brake system
- Movement of rolls with foot pedal
- Stand
- 4 sets of standard wheels
- Electrics 415v, 3ph, 50 hz.
Optional Equipment
Movement of top roll by hydraulic system
Operations possible
- Beading
- Closing
- Crimping
- Flanging
- Flattening
- Jennying
- Joggling
- Necking
- Shearing
- Swaging
- Wiring
| MODEL | SPS2.5 | SPS4.0 |
|---|---|---|
| Shaft length | 250mm | 300mm |
| Beading Capacity | 2.5mm | 4.0mm |
| Wheel diameter | 96 Ømm | 126Ømm |
| Throat depth | 160mm | 200mm |
| Motor power | 1.5 kw | 2.2 kw |
| Dimensions | 1400x550x1120mm | 1700x570x1200mm |
| Weight | 350kgs | 500kgs |
Machines CE certified - Capacities based on m.s. 40 kg mm² - s.s. 50-52 kg mm²
Full details and specifications available upon request.
