Hydraulic notching machine
Description
We are pleased to introduce our hydraulic notching machines as valuable additions to our range of sheet metal working machinery. Available as fixed angle 90° or variable angle 45º - 135º.

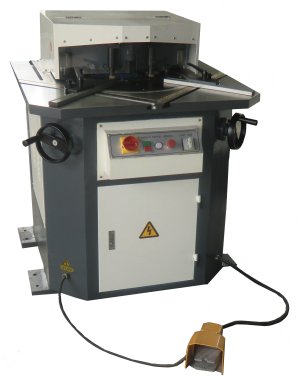

Fixed angle machine: Sturdy mono block construction with foot pedal control. This machine is complete with transparent finger guards, large working table with dovetail slots and scales, 2 positioning stops, removable material chute, fast and precise cutting action, Inch/Auto operation plus EXTRA set of top blades.
hydnotchMaximum cutting thickness : 4.0mm mild steel
Maximum cutting length: 200mm mild steel
Cutting angle: 90º
Power: 3.0 Kw
Dimensions: 100 x 100 x 120 cms
Weight: 520 kgs.
Variable angle machine
Sturdy mono-block construction with foot pedal control and complete with transparent finger guards, large working table with dovetail and slots and scales, 2 positioning side material chute, fast and precise cutting action, Inch/Auto operation, EXTRA set of top blades.
Maximum cutting thickness : 4.0mm
Maximum cutting length: 200mm mild steel
Cutting angle: 45º - 135º Power: 3.0 kw Dimensions: 150 x 95 x 140 cms Weight: 1.45 ton
