Platinum wide strip cut-to-length lines
Description
Models: KTE 1 and KTE 2

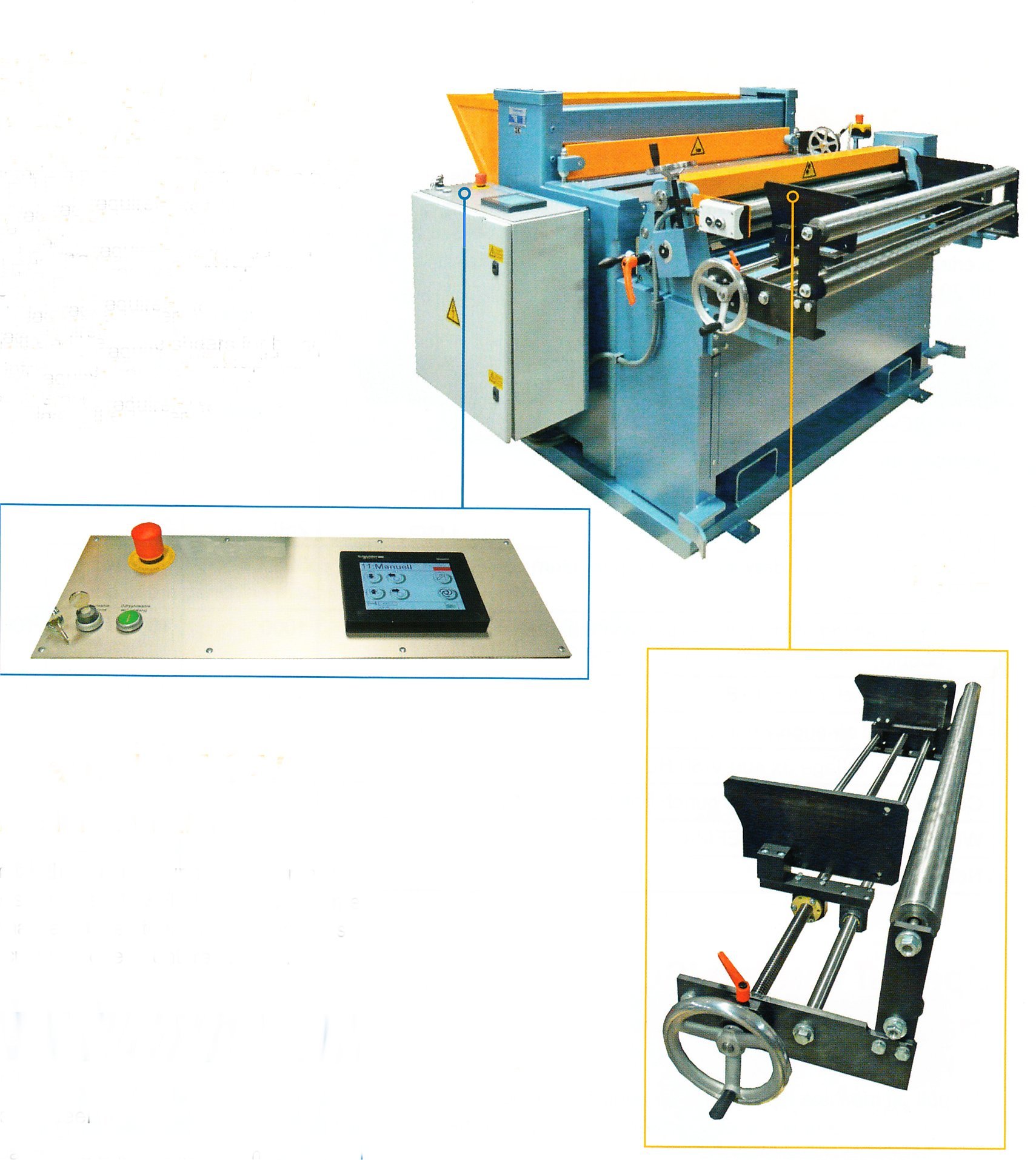

Ready to connect mounted on profile steel frame, wide strip cut-to-length line with low space requirement. Consisting of:
- Band feed and rough-aligning machine with rapid and creep feed
- Length measurement via shaft encoder
- "cut to length" shears (eccentric plate shears for higher working speed)
- Pendulum coiler, movable for small coils up to 500 kgs and out dia. max. 500mm
Type KTE 1-V and KTE 2-V (V= wireless connection with EFM-L)
This option helps to optimize the manufacturing of both machines by entering all necessary data into EFM-L (ie, from isometry programs) KTE automatically takes them over via wireless connection and starts to cut them to entered length.
In band width of 1020 and 1270mm and sheet thickness of 1.5mm and 1.2mm. Please contact us now for more information and for leaflets on full technical specifications.
