Platinum range power bending rolls WSRM range
Platinum manual bending rolls with back gear and manual drive. WSRV 05.1 - 07.4Famar bending rolls - Top Slip (Power) Double Pinch (A3 Series)
Description

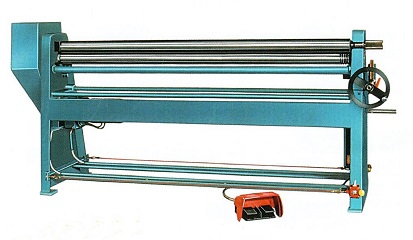

These bending rolls have a working length of 1 - 2 metres and roll diameter of 75 - 85mm. They are equipped with 2 speed motors and powered by a pole changing transmission brake motor over a chain transmission to the back gears.
- Foot switch with integrated emerency stop
- Function for forward and reverse
- Emerbency stop rip cords on the front and back side of the machine.
The workiing rolls are arranged asymmetrically, spherically turned and held in place by maintenance free dry plain bearings. The to roll can be swung out towards the front and is locked by a closed blocking bearing. The reverse gear and the clutch are to the left so that even narrow pipes can be easily removed.
Optional extras
- 3 shaft driving power
- other working speeds
- shaft finger protection
- positioning of the back roll with motor driving power by means of 1-axis CNC microprocessor control
Contact us now for some friendly advice and further details.
