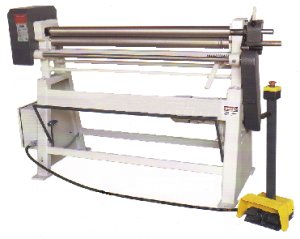

CMZ power top slip initial pinch assymetrical bending rolls
Description
We are pleased to offer our range of power operated bending rolls. These rolls are rugged in structure and built to operate on maximum capacities and will provide consistent profiles in keeping with metalworkers expectations. Minimum diameters average out at 1.5 x top roll dia. though you will appreciate much depends on width and thickness of work part and of course the material ie., mild or stainless steel, aluminium etc., etc.,
Features
- Two rollers powered by single gear box
- Rollers of SAE 1050 quality steel with high tensile strength
- Minimum diameters 1.5 x top roll dia.
- Mobile control panel with foot pedal control
- Wiring grooves standard in back and bottom rollers
- Brake motor for accurate rolling
- Built to EC safety requirements
- CE Marked
Models And Capacities
- CSP 1 - 1050 x 56 (top roll dia.) x 1.2mm
- CSP 2 - 1050 x 68 (top roll dia.) x 1.2mm
- CSP 3 - 1270 x 75 (top roll dia.) x 1.5mm
- CSP 4 - 1550 x 75 (top roll dia.) x 1.2mm
- CSP 5 - 2050 x 75 (top roll dias) x 1.0mm
