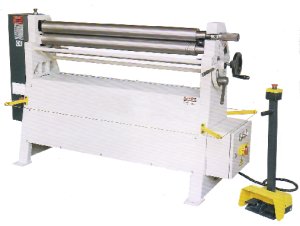

CMZ mechanical power RM range of bending rolls

Description

Introducing the RM range of power mechanical bending rolls. These machines are ideal for 'every day' use in any workshop involved in the forming of cylinders. This range covers heavier thickness ie., 1.5mm, 2mm, 2.5mm and 3mm. All models have roll speed of 6 rpm, and solid cast frame ends ensure no flexing or movement, particularly when working on maximum capacity.

Bending Sequence

Standard equipment

Mobile control panel - Drop end top roll - Main motor with brake system - Steel rolls with high tensile strength - Wiring grooves - Drop end top roller - SAE 1050 quality certified - Built to EC safety directives.

Optional extras

Cone Rolling attachment (maximum cone height 50% length of top roller) - Hardened rollers - Digital read-out for back roll.

Capacities available

RM 1050 x 90 x 3mm ms - RM 1270 x 90 x 2.5mm ms - RM 1550 x 90 x 2.0mm ms

RM 2050 x 95 x 1.5mm ms.

*Capacities based on mild steel 45 kg mm2
