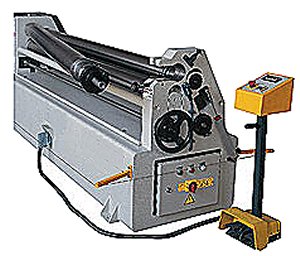

CMZ mechanical power IRM series bending rolls
Description
CMZ are delighted to offer a range of 3 roll bending roll machines which covers both popular working widths ie., 1050mm - 2550mm and mild steel thickness 2mm - 5mm (thickness according to width) This range is robust in construction, made with spheroid cast iron frames which withstand flexing or movement particularly important when working at maximum capacity.
Standard equipment
- Main motor with brake system
- Spheroid cast iron main frame
- Back roll with ball bearings for thin sheets
- Mobile control panel
- Wiring grooves
- Built to EC safety directives
- SAE 1050 quality cert
Optional equipment:
- Hardened rolls
- Digital readout for back roll adjustment.
| Working length: | 1050mm | 1050mm | 1270mm | 1270mm | 1550mm | 1550mm | 2050mm | 2050mm | 2550mm |
|---|---|---|---|---|---|---|---|---|---|
| Cap pre bending/rolling | 3/4mm | 4/5mm | 3/4mm | 4/5mm | 2/3mm | 3/4mm | 1/2mm | 2/3mm | 1.5/2.5mm |
| Top roll dia. : | 110mm | 130mm | 120mm | 140mm | 110mm | 140mm | 110mm | 130mm | 140mm |
| Min, Dia.: | 165mm | 195mm | 180mm | 210mm | 165mm | 210mm | 165mm | 195mm | 210mm |
Full specification and details are available on request.
Capacities based on mild steel 45 kg mm²
